Details

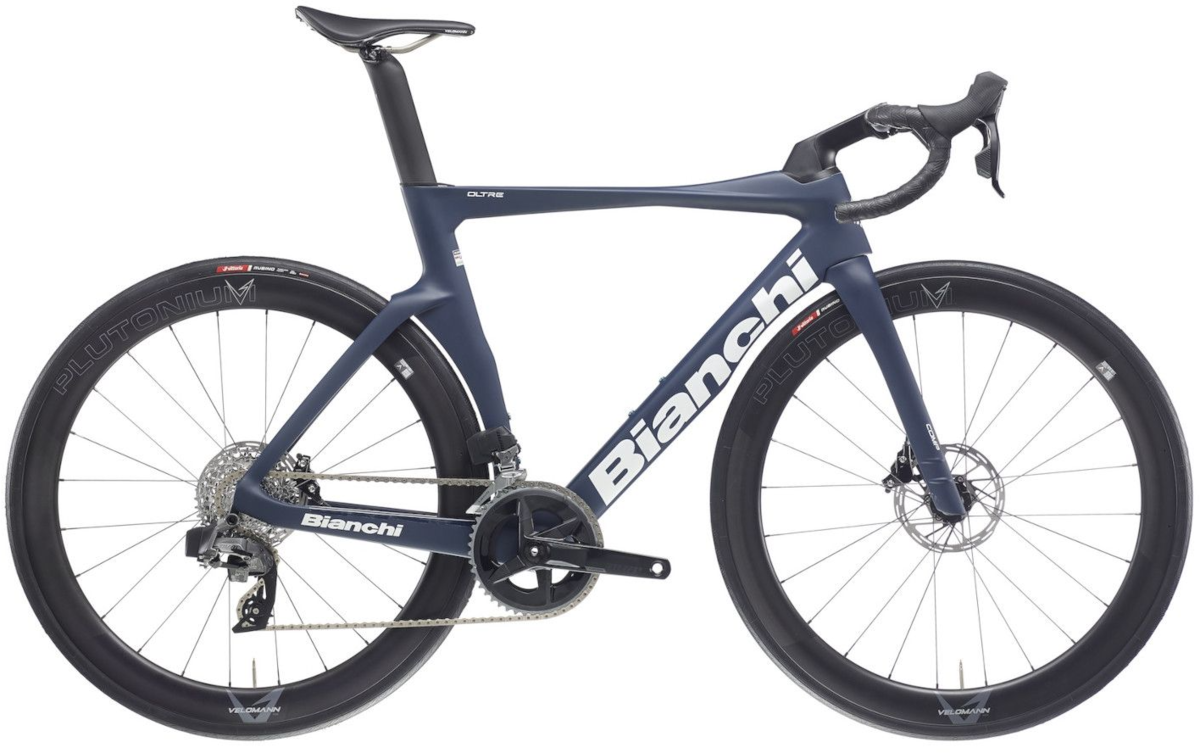

The Bianchi Oltre COMP is a road cycling marvel that combines performance, versatility, and affordability, delivering a premium riding experience accessible to a broader range of enthusiasts. Featuring an aerodynamic frame and fork design, it offers enhanced speed and efficiency, ideal for riders who crave a balance between performance and comfort. The Bianchi Oltre Comp doesn't compromise on aesthetics either, featuring a stylish design that upholds the brand's Italian heritage. For those looking to elevate their road cycling without breaking the bank, the Oltre COMP is a testament to Bianchi's commitment to excellence.
| SIZE | 470 | 500 | 530 | 550 | 570 | 590 |
|---|---|---|---|---|---|---|
| A | 450 | 480 | 510 | 530 | 550 | 570 |
| B1 | 515 | 525 | 536 | 550 | 560 | 575 |
| C | 410 | 410 | 410 | 410 | 412 | 412 |
| D | 58 | 58 | 68 | 68 | 68 | 68 |
| E | 83 | 88 | 103 | 118 | 133 | 153 |
| F | 579 | 581 | 582 | 588 | 593 | 603 |
| G | 74.5° | 74.5° | 74° | 73.5° | 73.5° | 73° |
| G1 | 70.5° | 71.5° | 72° | 72.5° | 73° | 73° |
| H | 43 | 43 | 43 | 43 | 43 | 43 |
| I | 368 | 368 | 368 | 368 | 368 | 368 |
| X | 385 | 392 | 393 | 397 | 402 | 406 |
| Y | 470 | 478 | 504 | 520 | 536 | 555 |
| WB | 982 | 983 | 984 | 988 | 996 | 1005 |
Specs
| Frame | Oltre Comp, carbon, disc brakes, electronic and mechanical shifting compatible, internal cable routing 1.5-1.5 headset, BB-PressFit 86,5x41, flat mount brakes, thru axle 12x142mm sizes 47-50-53-55-57-59cm |
|---|---|
| Fork | Full Carbon aero, disc brakes, integrated head 1,5", thru axle 12x100mm, compatible with 700x30 tire |
| Wheels | Velomann Carbon V50R 50mm profile, 700x21c, HG body, UD carbon fiber, tubeless ready and clincher, Internal width: 21 mm, weight per set: 1.630g |
| Tires | Pirelli P7, 700 x 28c, 60TPI |
| Bottom Bracket | Shimano, SM-BB72-41B, press fit for road, bearing, inner cover |
| Crankset | Shimano 105 12sp, FC-R7100, Ultegra hollowtech 2, for rear 12- speed, 50x34T, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm |
| Shifters | Shimano 105 Di2 hydraulic disc brake for road, ST-R7170, BR-R7170, for 160mm rotor |
| Front Derailleur | Shimano 105 Di2, FD-R7150 12-speed |
| Rear Derailleur | Shimano, 105 Di2 RD-R7150, 12-speed |
| Chain | Shimano, 105 12sp, CN-M7100 |
| Brakes | Shimano BR-R8170 Hydraulic disc brake, included in the shifter |
| Rotors | Shimano rotor for disc brake center lock, 160mm |
| Handlebars | Velomann Aero Compact handlebar, alloy diam. 31,8mm, reach 74mm, drop 116mm, for fully internal cable routing Size: 400mm-47~53cm, 420mm-55~59cm |
| Tape/Grips | Velo soft Velo soft Microfiber tape, black tape, black |
| Stem | Velomann Aero stem, material alloy, Oversize, 1.1/8", size: 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59cm |
| Headset | Fsa TH-073E ACB 1.5" 51.8x40x8 |
| Seatpost | Oltre Full Carbon Aero special dimension seatpost, 20mm offset, length: 280mm-47cm, 300mm-50~55cm, 350mm-57~59cm |
| Pedals | Sold Separately |
| Saddle | Velomann Mitora139 Hyper, open flow, carbon rails, carbon-reinforced nylon, Large 139mm Lenght 250mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| ZP - Blue-Grey//Off White- Full Matt / 55cm / 700c | 08059919091625 | YTB26U55ZP | 210000029086 |
