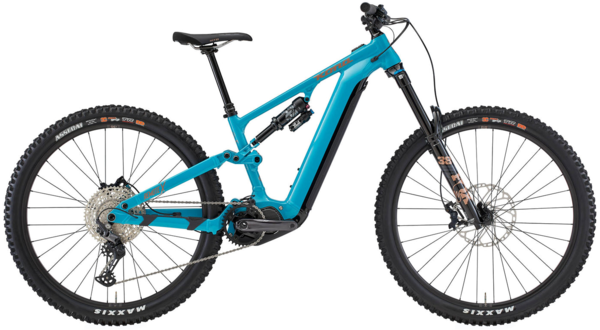

Kona Remote X

Kona Remote X
  • Color: Gloss Viridian w/ Metallic Bronze Decals
$4,999.99
Color: Gloss Viridian w/ Metallic Bronze Decals
Size: Large
Wheel Size: 29-inch
Please select options Unavailable
This item is not permitted to be shipped, however it can be purchased online and picked up.

Details

Taking the amplification of the Process X to a mad scientist approved logical conclusion, we bring you the Remote X. For those times when “big enough” and “good enough” are not enough, the Remote X brings 180mm of travel and a Shimano EP8 motor assist to the gravity party along with an appetite for mayhem. Built for high speed and big hits in gnarly terrain, the Remote X is your invitation to leave the shuttle rigs behind and go hammer out the vertical without any middlemen. Spend less time behind the wheel, log way more time on two wheels, or one wheel, or getting plenty of breathing room beneath your wheels. A 612Wh battery keeps the fun times ripping for lap after lap, the super composed handling keeps you in control no matter how hectic things get, and burly, highly evolved Kona construction ensure that everything stays in one piece no matter how hard you shred.

Geometry
Sizes:
SizeSMLXL
1 ST Length 380 380 420 450
2 TT Length 568 593 621 660
3 Reach 430 455 480 515
4 Stack 635 635 645 655
5 Standover 765 765 770 775
6 HT Angle 63.5 63.5 63.5 63.5
7 HT Length 110 110 121 133
8 ST Angle 77.8 77.8 77.7 77.5
9 CS Length 440 440 440 440
10 BB Drop 20 20 20 20
11 BB Height 355 355 355 355
12 Wheelbase 1225 1250 1280 1320
13 Front Center 786 811 841 881
14 Fork Length 596 596 596 596
15 Fork Offset 44 44 44 44
Sizes:
Height/InchesHeight/MetricInseam/InchesInseam/MetricMTB/XC Trail/FatAll Mountain/EnduroSplice
4'10"-5'1" 147-155cm 24”-27” 61-69cm XS XS Small
5'0"-5'3" 152-160cm 26"-29" 66-74cm Small Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm Small, Medium Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm Medium Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm Medium, Large Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm Large, XL Large, XL Large, XL
6'1"-6'5" 185-196cm 33"-36" 84-91cm Large, XL Large, XL Large, XL

Specs

Frame Kona 6061 Aluminum Butted 178mm Travel
Fork Fox 38 Performance 180mm Tapered 110 Spacing
Rear Shock Fox Float X Performance Elite
Rims WTB HTZ i30 TCS 2.0
Hubs Formula 110x15mm (centerlock)/Formula 148x12mm (centerlock)
Spokes Stainless Black 14g
Tires Maxxis Assegai DD TR 3C 29x2.5" WT
Crankset Shimano Deore XT
Chainrings 36t
Shifters Shimano Deore
Rear Derailleur Shimano Deore
Cassette/Freewheel Shimano Deore 10-51t 12spd
Chain Shimano Deore
Rotors Shimano RT64 220mm (centerlock)/Shimano RT64 203mm (centerlock)
Brake Levers Shimano SLX
Handlebars Kona XC/BC 35
Tape/Grips Kona Key Grip
Stem Kona XC/BC 35
Headset FSA No.57E
Seatpost TranzX Dropper +RAD Internal 31.6mm
Saddle WTB Volt
Motor Shimano EP800 20MPH
Battery Darfon 612Wh
Controller/Display Shimano SC-EM800 Display
Charger Darfon Smart 4A

* Subject to change without notice.

Part Numbers

Option UPC Store SKU
Gloss Viridian w/ Metallic Bronze Decals / Large / 29-inch 841073152506 210000027419
